| PRINTING METHOD |
On-demand Inkjet (piezoelectric) |
| NOZZLE CONFIGURATION |
800 nozzles Black, 256 nozzles each colour (Cyan, Yellow, Magenta) |
| MINIMUM INK DROPLET VOLUME |
3.8 Picolitres |
| RESOLUTION |
| |
4800 x 2400 optimised dpi with (with Variable Sized Droplet Technology) |
| PRINT SPEED |
| BLACK TEXT A4 (Normal) |
25 ISO ppm |
| COLOUR TEXT A4 (Normal) |
12 ISO ppm |
|
PAPER HANDLING
|
| PAPER FEED METHOD |
Friction feed with paper feeder and automatic document feeder |
| PAPER SIZES |
A4, A5, B5, B6, A6, Legal, 13 x 18cm, 10 x 15cm, 20 x 25cm Envelopes: C6, No 10, DL |

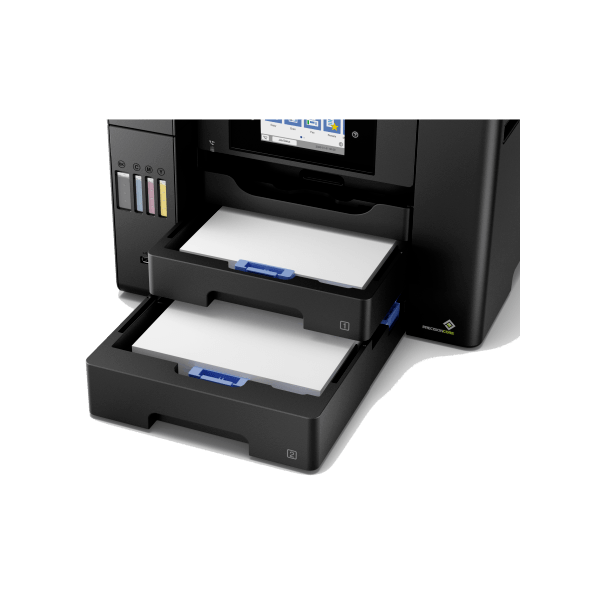

| PAPER HOLD CAPACITY |
Paper tray input capacity: 2 x 250 sheet cassette, A4 Plain paper (80g/m2),
Multipurpose Tray: 50 sheets
20 sheets-PGPP
10 sheets-Envelope
|
| OUTPUT CAPACITY |
125 sheets |
| DOUBLE-SIDED PRINTING |
Yes |
| |
Scanner
|
|
SCANNING
|
| SCANNER TYPE |
A4 Flatbed colour image scanner |
| MAX. DOCUMENT SIZE |
216 x 297 mm (Up to A4) |
| PIXEL DEPTH |
Input 48bits colour (16bits/greyscale) / output 24bits colour (8bits/greyscale) |
| SCANNING RESOLUTION |
1200 x 2400 dpi |
Copy Function
|
| COPY SPEED |
| COPY SPEED BLACK TEXT NORMAL (A4) |
23.0 ISO ipm1 |
| COPY SPEED COLOUR TEXT MEMO (A4) |
10.0 ISO ipm1 |
| COPY PAPER SIZE (FLATBED) |
Letter, A4, B5, A5, A6, 13x18cm, 16:9, 10x15cm, #10, DL, C4, C6 |
| REDUCTION/ENLARGEMENT |
Auto Fit Function |
FAX
|
| TRANSMISSION & RECEPTION |
| TYPE |
Colour and mono support |
| LINES |
PSTN (general phone lines) |
| TRANSMISSION SPEED |
Up to 33.6kbs (approx. 3 secs per page) |
| SPEED DIAL |
Up to 200 Names & Numbers |
| MEMORY |
Up to 550 pages (ITU-T No.1 chart) |
| FAX RESOLUTION (MONO) |
Standard (8pels/mm x 3.85lines/mm), Fine (8pels/mm x 7.7lines/mm), Super Fine (8pels/mm x 15.4lines/mm), Ultra Fine (16pels/mm x 15.4lines/mm) |
| FAX RESOLUTION (COLOUR) |
Fine (200x200), Photo (200x200 with error diffusion) |
| ERROR CORRECTION MODE |
ITU Group3 fax with Error Correction Mode |
| PC FAX* Windows only |
Yes |
| GROUP DIAL |
Yes (up to 199 groups) |
| BROADCAST FAX |
Yes (mono only) |
| AUTO REDIAL |
Yes |
| RING DETECTION |
Yes - Duet |
| AUTOMATIC DOCUMENT FEEDER FUNCTION |
| MAXIMUM DOCUMENT SIZE |
A4 |
| PAPER TYPES SUPPORTED |
Plain paper 64~95g/m2 |
| DUPLEX |
Yes - for two sided scanning, copying and faxing |
| CAPACITY |
50 pages (75g/m2) or 3.5mm (A4, Legal, Letter, B5, A5) |
General
|
| OPERATING SYSTEMS |
| PRINTER DRIVERS* |
Windows® XP/XP Professional x64 Edition/Vista/7/8/8.1/10, Windows® Server 2003 SP2 or later
Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
*Under Windows® Server OS, only printing and scanning are supported.
Mac OS X 10.6.8, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x |
| * Drivers if available are downloadable from Tech Epson |
| ELECTRICAL SPECIFICATIONS |
| RATED VOLTAGE |
AC 100 ~ 240V |
| RATED FREQUENCY |
50 ~ 60Hz |
| POWER CONSUMPTION |
Approx. 19W Standalone copying (ISO/IEC 24712 Pattern)
8.9W (Ready Mode)
0.8W (Sleep Mode) |
| NOISE LEVEL |
| NOISE LEVEL* |
LwAd B(A): 6.46 (Plain paper default)
LpAm dB(A): 51db (Plain paper default) |
| * Default mode is in accordance with ISO7779 |
| INTERFACES |
| CONNECTIVITY |
High Speed USB — Compatible with the USB 2.0 Specification. |
| MOBILE PRINTING |
Epson Connect (Epson Email Print - Scan to Cloud, Remote Print + Epson iPrint)
Apple AirPrint |
| NETWORKING |
802.11b/g/n Wi-Fi Direct®
10-Base-T, 100 Base-TX Ethernet |
| LCD SCREEN |
4.3" TFT Colour LCD with keypad and gesture navigation |
| CARD SLOTS |
| Built in |
USB |
| WARRANTY |
| |
12 months return to base |
Standard |
| |
24 months return to base warranty. For an additional 12 months (total of 24 months), register online at www.epson.com.au/registrations within 12 months of purchase. |
| |
Epson Warranty |
| PRODUCT DIMENSIONS |
425mm(W) x 500mm(D) x 350mm(H) |
| WEIGHT |
17.5kg |
| INK BOTTLES & YIELDS |
| INK BOTTLES |
T542 (Black, Cyan, Magenta, Yellow) |

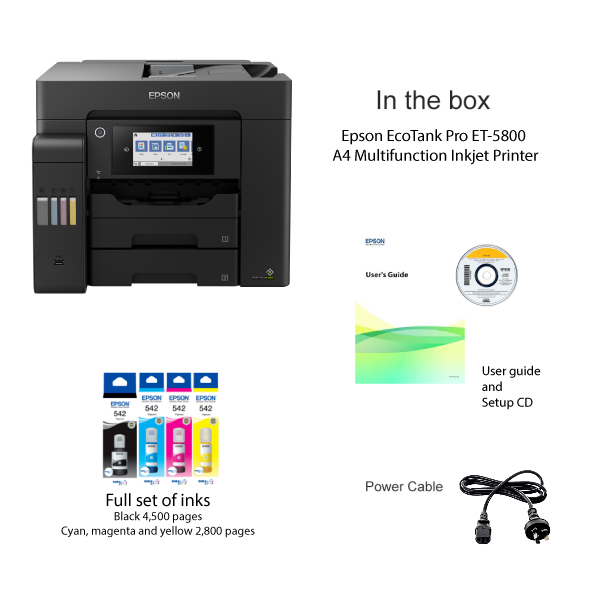

| INK BOTTLES BUNDLED WITH PRINTER YIELDS2 |
4,500 Pages Blk / 2,800 Pages Clr |
| REPLACEMENT INK BOTTLES YIELDS2 |
7,500 Pages Blk / 6,000 Pages Clr |
