Description
The Canon imagePROGRAF TC-20M is perfectly built for retail, education and small business use. It has a small footprint. It also features an A4 flatbed scanner which helps enlarge copy.
Compact Efficiency with Excellent Print Quality
TC-20M 24 inch desktop large format printer comes with roll support and standard built-in auto sheet feeder, produces quality drawings & poster prints for hybrid workplaces.
• Suitable for CAD & poster printing
• 4-colour pigment ink
• Space-saving desktop model
• Support free poster & print submission applications
Easy to enlarge from A4…and easy to copy and repeat copy
Enlarging or copying an A4 sized document up to A1 is really easy. This capability extends to several document formats including flyers, handwritten manuscripts, and thick booklets. This also works for restaurant menus, teaching materials and travel agency posters.
Space Saving Desktop Model
Designed to be installed in a small & tight space to print various document sizes ranging from A4 to A1/24 inches sizes. It can be placed on a desk, cabinet or shelf with a flat top that will fit in a home office or satellite office, or use the supplied stand to make it freestanding.
High Quality Prints
Pigment ink for all colours produces fine lines & texts on drawings and delivers vivid colour expression in posters and flyers, especially in red colour to attract attention. The prints will not smudge easily due to accidental water spills or highlighter markers and remain visible.
High Ink Capacity for Continuous Printing
Comes with a total of 280 ml of ink (4 x 70 ml) to cater for various applications such as CAD drawings, GIS Maps, posters and flyers, reduces the frequency and effort of ink refills.
All Front Access for Maintenance
Ease of use for daily print operations. Fully front accessibility for loading paper, replenishing ink, and replacing maintenance cartridges.
Versatile Switching Between Roll & Cut Sheets
Roll and cut sheets can be loaded at the same time for easy printing from A4 to A1 sizes to minimise waiting time. Selection of paper sizes from applications before sending to print.
Auto Sheet Feeder Support
Standard built-in auto sheet feeder can support up to 100 A4 or 50 A3 cut sheets* for continuous printing. Lesser downtime to reload paper.
Print Head
PF-08
Number of Nozzles
Matte Black: 1,280 Nozzles
Other Colours: 1,024 Nozzles per Colour
Ink Bottle

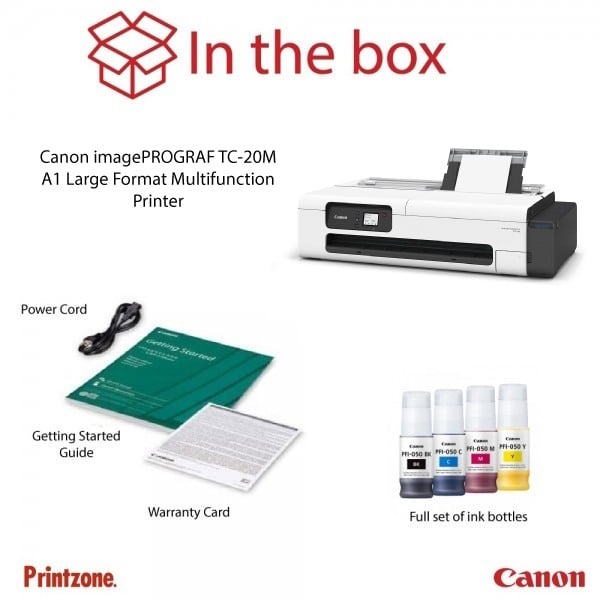

Shipped with Printer: C, M, Y, BK (70ml each)
Replacement: PFI-050 (70ml)
Ink Type
Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Printer RAM
1GB
Media Feed
Roll Feed: One Roll, Top Loading, Front Output
Media Width
Roll Feed
ISO: A3, A2, A2+, A1
JIS: B2, B3
ARCH: 18", 24"
Others: 17"
Cut Sheet:
ISO: A4, A3, B4
DIN: C4
JIS: B4
ANSI: 8.5 x 11", 8.5 x 14", 11 x 17"
ARCH: 9 x 12"
Photo: 10 x 12mm 10 x 15mm
Others: User-defined size (Width: 210 mm–297 mm, Length: 203.2 mm -432 mm)
Media Cutter
Automatic Horizontal Cutting (Rotary Cutter)
Media Thickness
0.08–0.28 mm
Media Core Sizes
2" Core Only
Maximum Roll Outer Diameter
110 mm or less
Media Output
Optional Basket BU-06
Included Stand SD-24
Printing Software Utilities
Direct Print Plus
Free Layout Plus
imagePROGRAF Printer Driver for Windows®/ Mac®
Media Configuration Tool
Canon PRINT Inkjet Selphy
PIXMA Cloud Link
PosterArtist Web
Print Language
Printer: SGRaster
Operating System
32-bit: Windows 7/8.1/10
64-bit: Windows 7/8.1/10/11, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac: mac0S v10.14.6 - macOS v12.x
Interface
USB Type B: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
USB Type A: Direct Print from USB (JPEG/PDF*)
Ethernet (Built in): IEEE802.3u (100BASE-TX)/ IEEE802.3 (10BASE-T)
Wireless LAN: IEEE 802.11 b/g /n
*PDF only supported file generated by TC-20M and Canon PIXMA printer
Power Supply
AC 100–240V (50–60 Hz)
Power Consumption
Maximum: TC-20M: 26 W or less
Standby: 2.4 W or Less (using all ports)
Power Off: 0.3 W or less
(Executive Order Compliant)
Operational Environment
Temperature: 15°–30° C
Relative Humidity: 10–80% (No Dew Condensation)
Printer Dimensions (W x D x H) and Weight
TC-20M: 968 x 545 x 245 mm (ASF Closed)
Weight: Approx. 33kg
TC-20M with Stand: 968 x 870 x 874 mm (Basket Opened)
Weight: Approx. 42kg
Package Dimensions (W x D x H) and Weight
1120 x 726 x 406, Weight: 45kg
Options
Stand: SD-24
Desktop Basket: BU-06
Scanner
Type: Flatbed Maximum Document Size: A4/LTR(216 x 297mm)
Optical Resolution: 1200
