SCANNER TYPE
| Sheet Feed, one pass duplex A4 colour scanner
|
OPTICAL RESOLUTION
| 600 x 600 dpi
|
MAXIMUM INTERPOLATED RESOLUTION
| 1200 dpi
|
LIGHT SOURCE
| 3 Colour RGB LED
|
COLOUR SCAN MODE (Output bit depth) | 30-bit input / 24-bit output
|
GREYSCALE SCAN MODE (Output bit depth)
| 30-bit input / 24-bit output
|
PAPER / MEDIA HANDLING
|
|
DOCUMENT SIZE

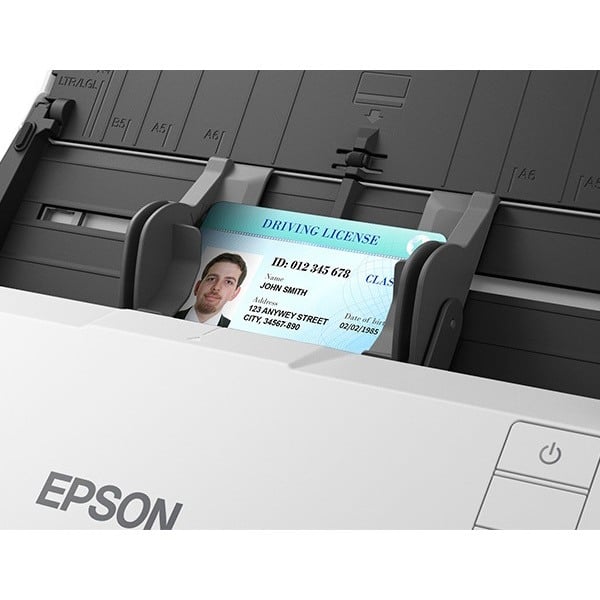

| Plastic card (in portrait scanning only), A4, A5, A6, B5, Business card, Letter, and Legal A3 size supported by digital stitching ADF Minimum size: 50.8mm x 50.8mm (Horizontal x Vertical) ADF Maximum size: 215.9mm x 6096mm (Horizontal x Vertical) |
INPUT TRAY CAPACITY
| 50 sheets (Based on 80g/m2 paper)
|
DAILY DUTY CYCLE
| 4,000 pages
|
PAPER WEIGHT
| 27-413 g/m2
|
SCANNING SPEED
|
|
(A4/Letter Size)
| 35ppm/70ipm : 200dpi – Black & White, Colour, Grey 35ppm/70ipm : 300dpi – Black & White, Colour, Grey 35ppm/70ipm : 400dpi – Black & White, Grey |
FUNCTIONS
|
|
DOCUMENT ENHANCEMENT TOOLS
| Skip blank page, A3 stitching, Punch holes removal, Automatic de-skew, Automatic multidocument recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Unsharp Mask (USM), Descreening, Automatic Folder Creation, Barcode Recognition, Full Zonal OCR |
OUTPUT FORMATS
| JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A
|
BUNDLED SOFTWARE
| Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2
|
SUPPORTED PLATFORMS
| Mac OS 11.0.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 11, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows server 2003 R2, XP Professional x64 Edition
|
INTERFACE
| USB 3.0, Wi-Fi
|
PROTOCOL SUPPORT
| TCP/IP, DHCP, DNS, SNMP, SLP
|
ENVIRONMENTAL CONDITIONS
|
|
TEMPERATURE
| Temperature (Operating): 41° to 95°F (5° to 35°C)
Storage: -13° to 140°F (-25° to 60°C) Humidity (Operating): 15 – 80% (no condensation) |
ELECTRICAL SPECIFICATIONS
|
|
RATED VOLTAGE
| AC 100-240V
|
POWER CONSUMPTION
| Operating: 17W Ready mode: 9.2W Sleep mode: 1.2W Power Off: 0.1W |
DIMENSIONS
|
|
WIDTH x DEPTH x HEIGHT
| 296mm x 169mm x 176mm
|
WEIGHT
| Approx. 3.7kg
|
WHAT'S IN THE BOX
|
|
| Contents | Epson WorkForce DS-570WII, Setup Sheet, Warranty / Registration Card, USB Cable, Software CD-ROM, AC Adapter & Cable
|
PRODUCT OPTIONS
|
|
B12B819011
| Flatbed Scanner Dock
|
B12B819031
| Roller Assembly kit to suit
|
B12B819051
| Carrier Sheet
|
B12B819291
| Cleaning Kit
|
WARRANTY
|
|
| Standard | 12 months return to base
|
Optional
| Additional 2 Year Warranty 3YWDS570WII CoverPlus
|
